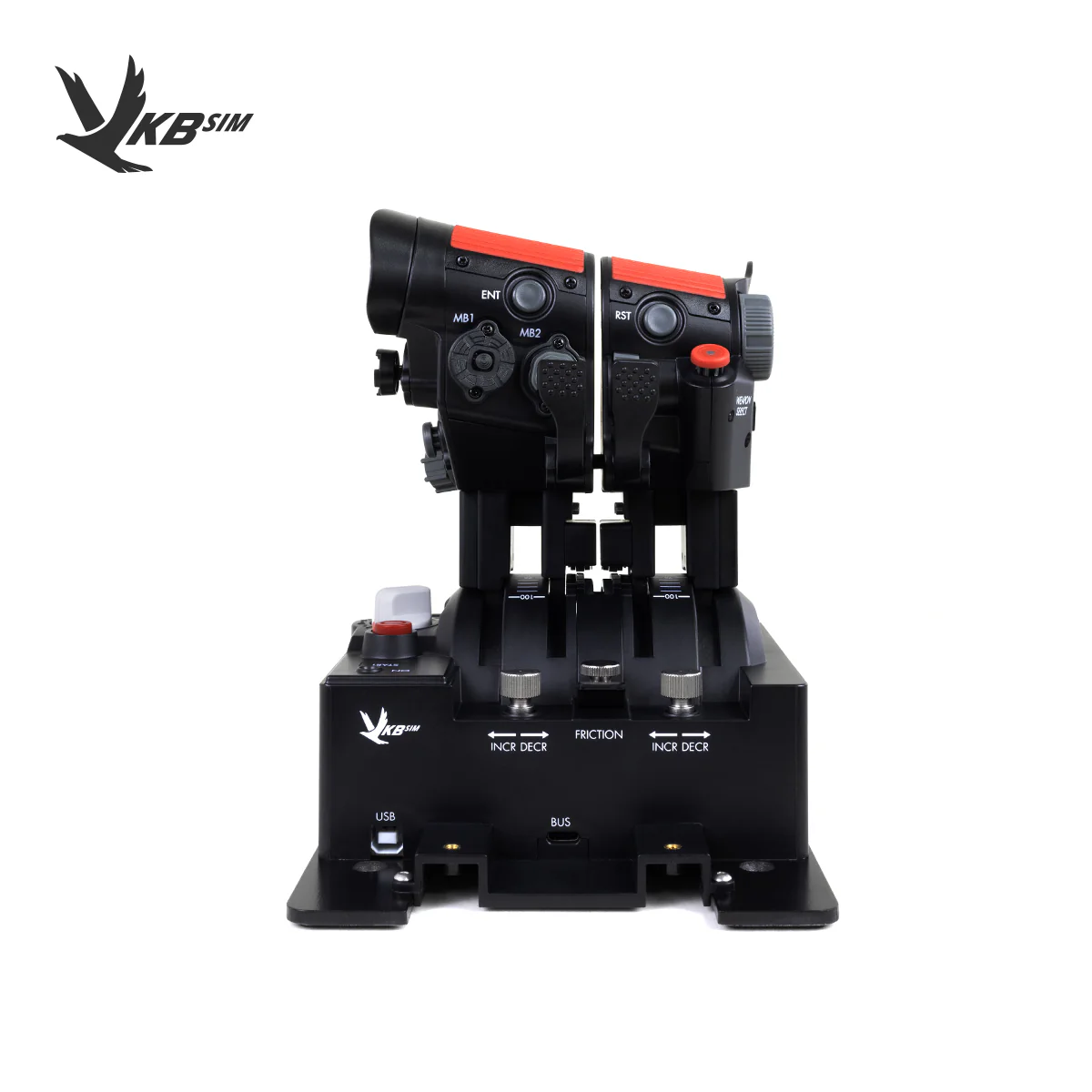

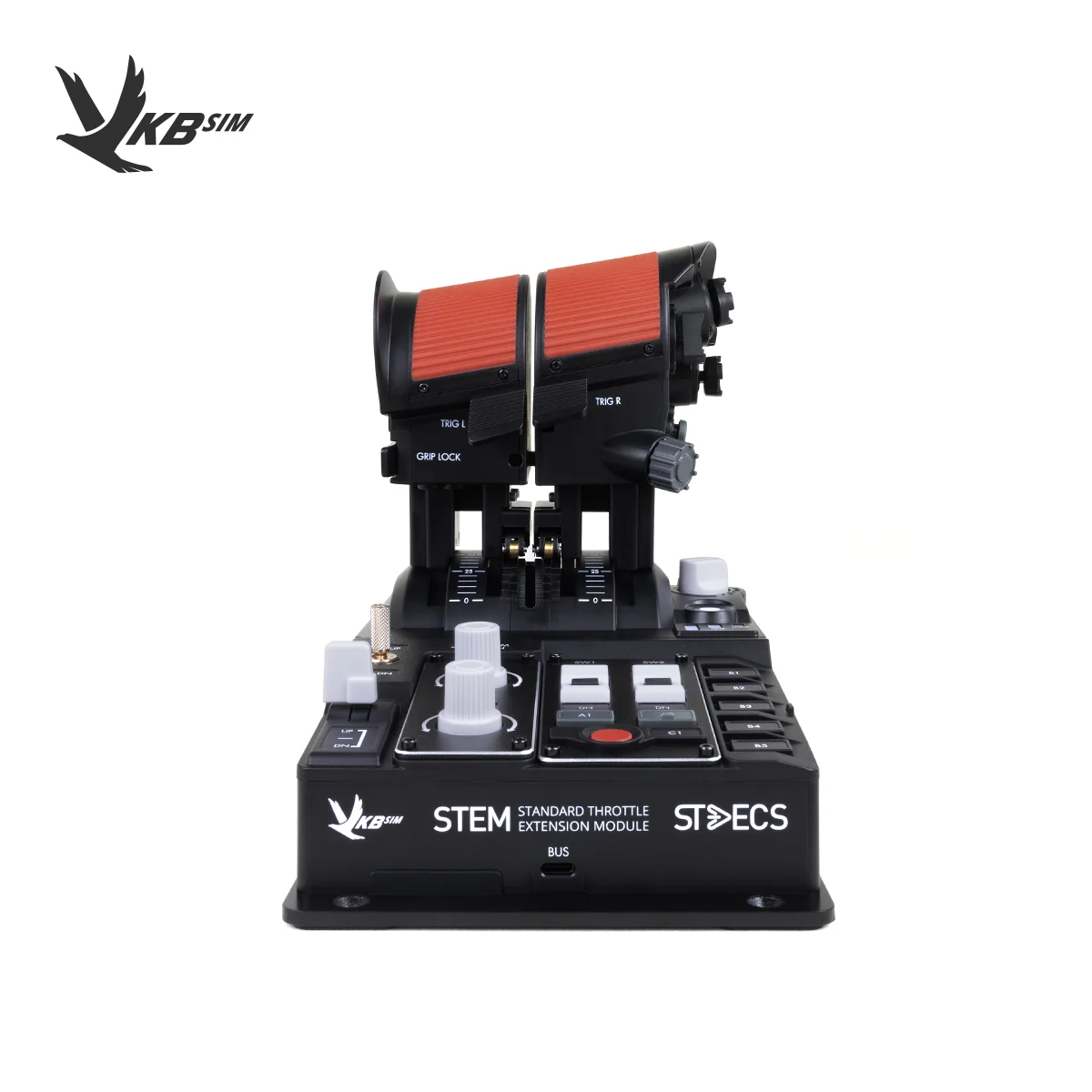

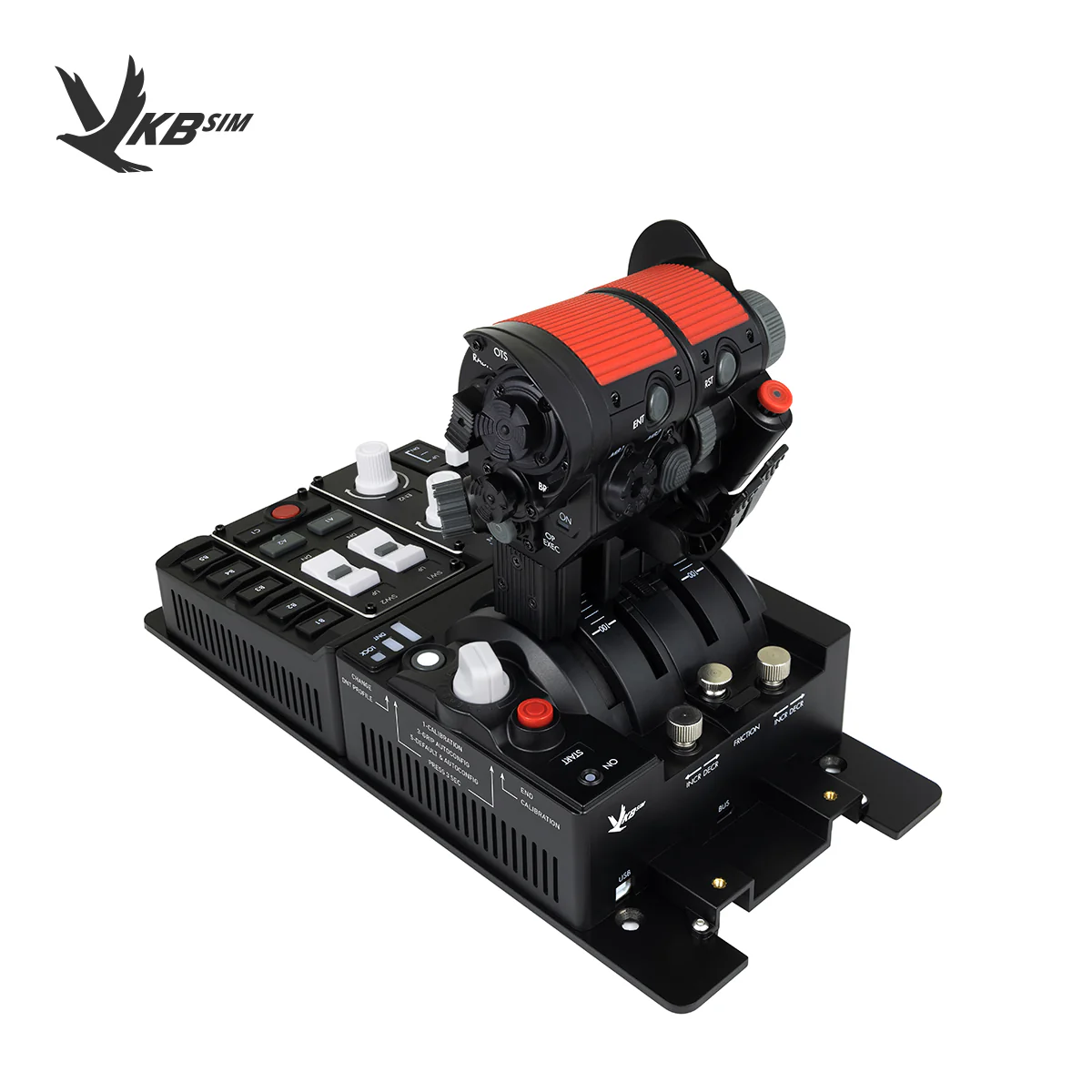

STECS Throttle System Mk.II - Standard

STECS Throttle System Mk.II - Standard

Based on a solid steel platform, the STECS Standard can be used as a desktop stand-alone device, or mounted to a sim rig or chair mount. Includes MFH (MultiFunctional Holder) compatible fixture to connect frontal extension modules.

Does not include GNX MFH (separate purchase).

For optimal ergonomic setup please choose the corresponding controller mount here.

Please click here for Dimensions.

Includes

• 1 STECS base
• 1 MTG-L grip
• 1 MTG-R grip
• Red rubber grip pads (pre-installed)
• Green and gray rubber pads included
• 5 Detent Frames
• 4 L-shape detent - regular
• 4 L-shape detent - large
• 5 V-shape detent - regular
• 5 V-shape detent - large
• 2 W-shape
• 1 STEM module
• 1 STECS Accessory Magazine
• 1 Phillips head screwdriver
• 1 Hex screwdriver
• 1 USB cable (180 cm / 6')

STECS Throttle Grips

MTG-L (Modern Throttle Grip Left)

• 2 Buttons
• 2 Triggers
• 2 Wheel encoders
• Red rubber pad pre-installed; green and gray pad included

MTG-R (Modern Throttle Grip Right)

• 2 Triggers
• 3 Buttons
• 1 2-Way Rocker Switch with Center Push
• 2 4-Way Hats with Center Push

• 1 2-Axis Ministick

• 1 Analog Wheel Axis
• Additional Included Button Modules (user swappable):
  • 3 Buttons
  • 3 5-Position Hats
  • 3 Replaceable Hat caps
• Red rubber pad pre-installed; green and gray pad included


STEM Module

• 8 Buttons
• 2 K-switches with central push button
• 2 Encoder with central push button
• 1 Self-centering 3-position flip switch
• 1 3-position flip switch

STECS Base

• 2 Analog Axes
• 4 Ball bearings on main axes
• 2 Buttons
• 1 5-position rotary switch

General Specifications

• Grips and base made from industrial-grade ABS
• Base supported with glass-fiber-reinforced PA for load-bearing structures
• Tabletop baseplate made from steel
• 32-bit ARM Controllers inside the base and grip
• ALPS buttons (Japan OEM) for extended longevity
• Contactless MaRS sensors with High Resolution
• Firmware Upgrade via USB
• Onboard Memory for Storing Profiles
• Dimensions

Warranty

• 1 Year

Instructions

• VKB Official YouTube Channel

Downloads

Please visit the Downloads section for the latest firmware and tools.
