GNX Throttle Quadrant (GNX-THQ)

GNX Throttle Quadrant (GNX-THQ)

The GNX Throttle Quadrant extension module adds a new level of realism to the passionate flight and space pilot.

While the GNX-THQ was designed with General Aviation pilots in mind, the module is highly configurable to suit any flight and space sim cockpit.

The THQ can be attached side-by-side to:

• Gladiator NXT EVO Standard or Premium controller base (from either side)
• SEM modules (max number of SEM modules in system – 4x)
• THQ modules (max number of THQ modules in system – 4x)
• Gladiator EVO Omni Throttle, but only on the opposite side of the throttle’s ‘elbow’. For example, a left-hand throttle only allows attachment on the right hand side. To overcome this limitation a USB Controller can be used which then allows the THQ to be connected to the PC and therefore placed independently of the controller

Up to 4 THQ modules can be accommodated in your cockpit.

Specifications

• 3 Analogue axis (w/ clutch dampers and adjustable length/height of axis levers)
• 8 Push buttons

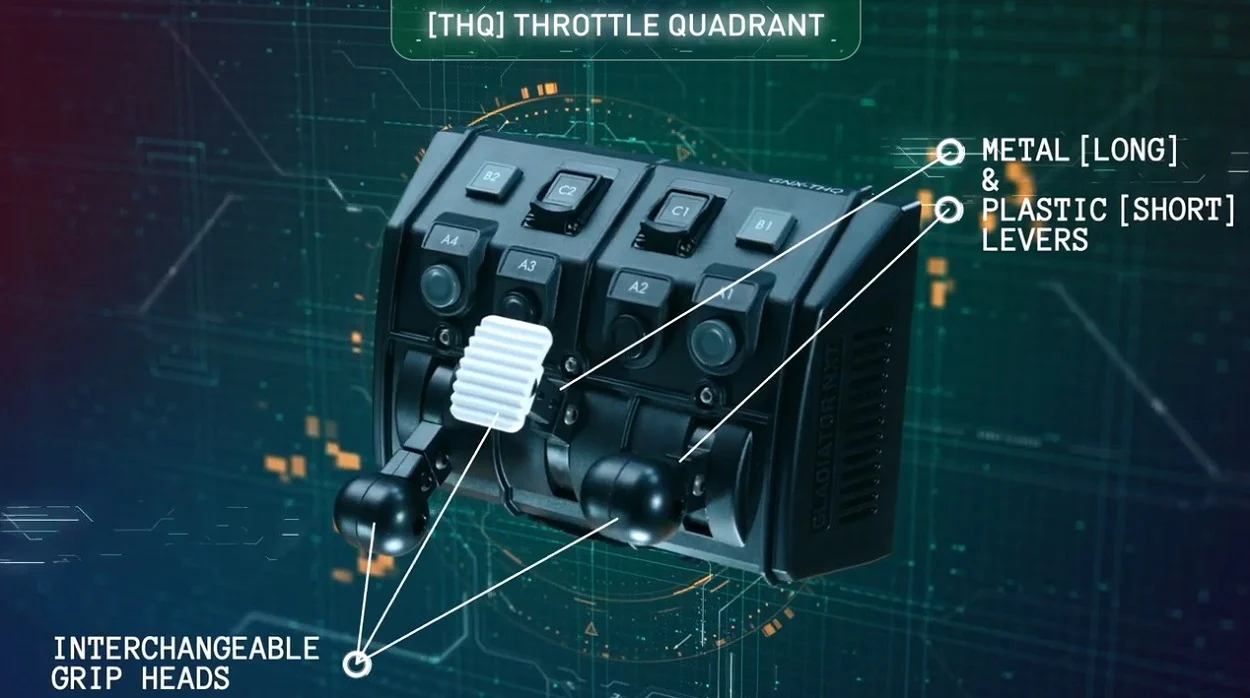

• 5 Interchangeable axis lever heads (different colours/shape)
• Up to 4 GNX THQ modules can be connected, providing 12 analogue axis
• Newly developed VKB Njoy 32NG firmware allows for 20 analogue axis to be recognised in Windows as 3 joysticks (2 with 8 axis, plus 1 with 4 axis)

Connectivity

• GNX BUS Connection (included)
  –OR–
• USB Connection as a stand-alone unit when not connected to a Gladiator EVO controller - requires GNX USB Controller (HID-Main)

Important: Depending on your configuration of controller/s and GNX modules, you may require a GNX USB Controller. Please check the information on the GNX USB Controller page.

Compatible with

• Gladiator NXT Standard or Premium
• UCM Stronghold
• GNX USB Controller (HID-Main)
• Recommended GNX MFH (Multi Functional Holder) in order to mount module

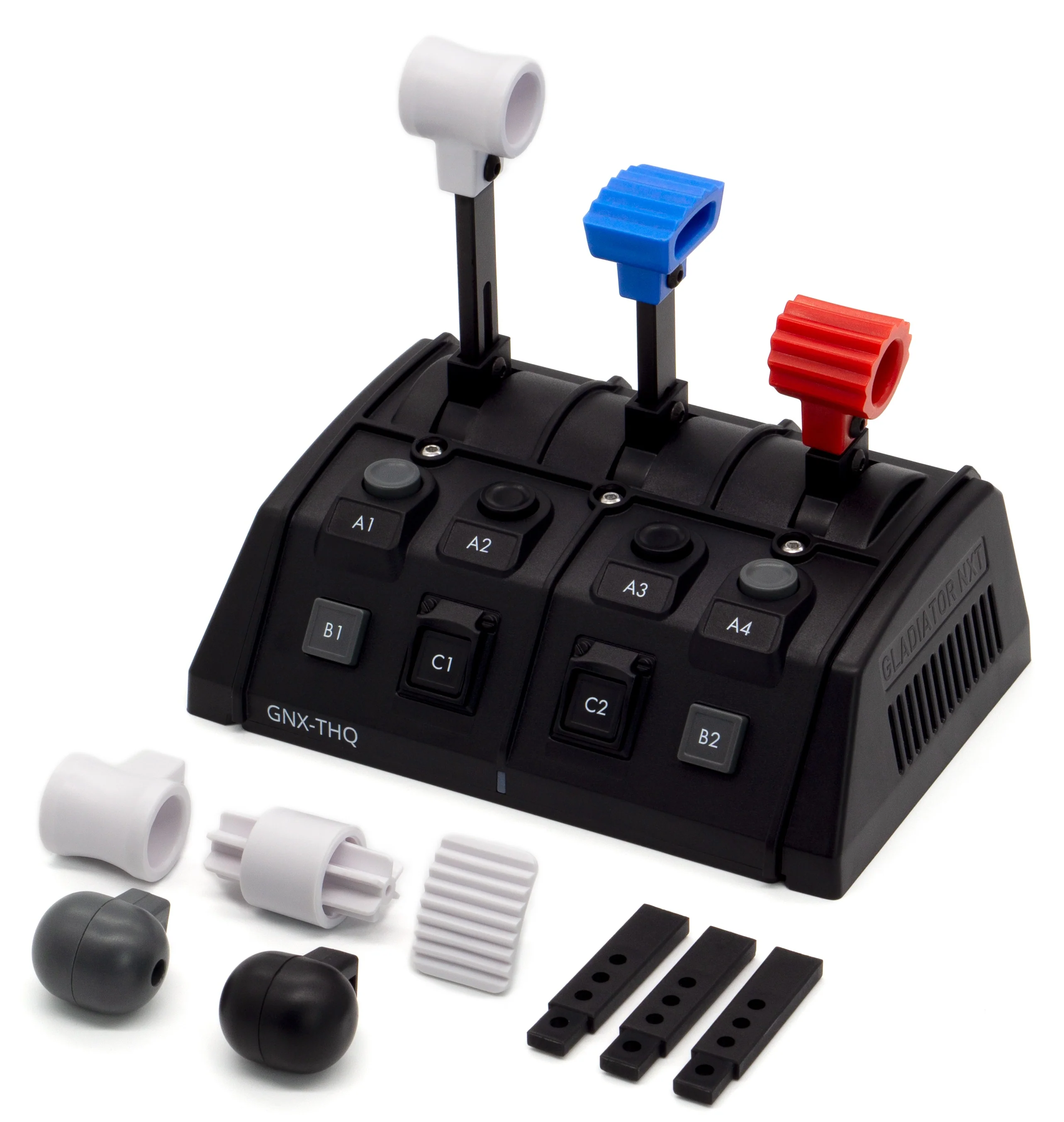

Contents

• THQ
• Plastic coupler
• Type-C connector guard
• Rubber pads
• Plastic spacers
• Interchangeable heads
• Metal levers (long)
• Plastic levers (short)
• Internal “module-to-module” cable
• Internal “module-to-joystick” cable
• Phillips Screw driver
• HEX Screw driver
• Stickers with protective film

Instructions

• VKB Official YouTube Channel

Downloads

Warranty

• 1 Year
